Pre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVC

  • 1
  • 2

Brand Name : HUAXIN or OEM

Model Number : Pre-Connectorized Drop Cable

Certification : RoHS,ISO9001,ISO14001,ISO45001,CE

Place of Origin : CHINA

MOQ : 2km

Price : $0.09-0.5

Payment Terms : L/C,T/T

Supply Ability : 2000KM PER DAY

Delivery Time : 7-30 work days

Packaging Details : 1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation.

Connector type : LC/SC/FC/ST

Surface level : PC/UPC/APC

Outer sheath : PVC/LSZH

Color : Black or White

Length : Customize

Free Sample : Avalible

Contact Now

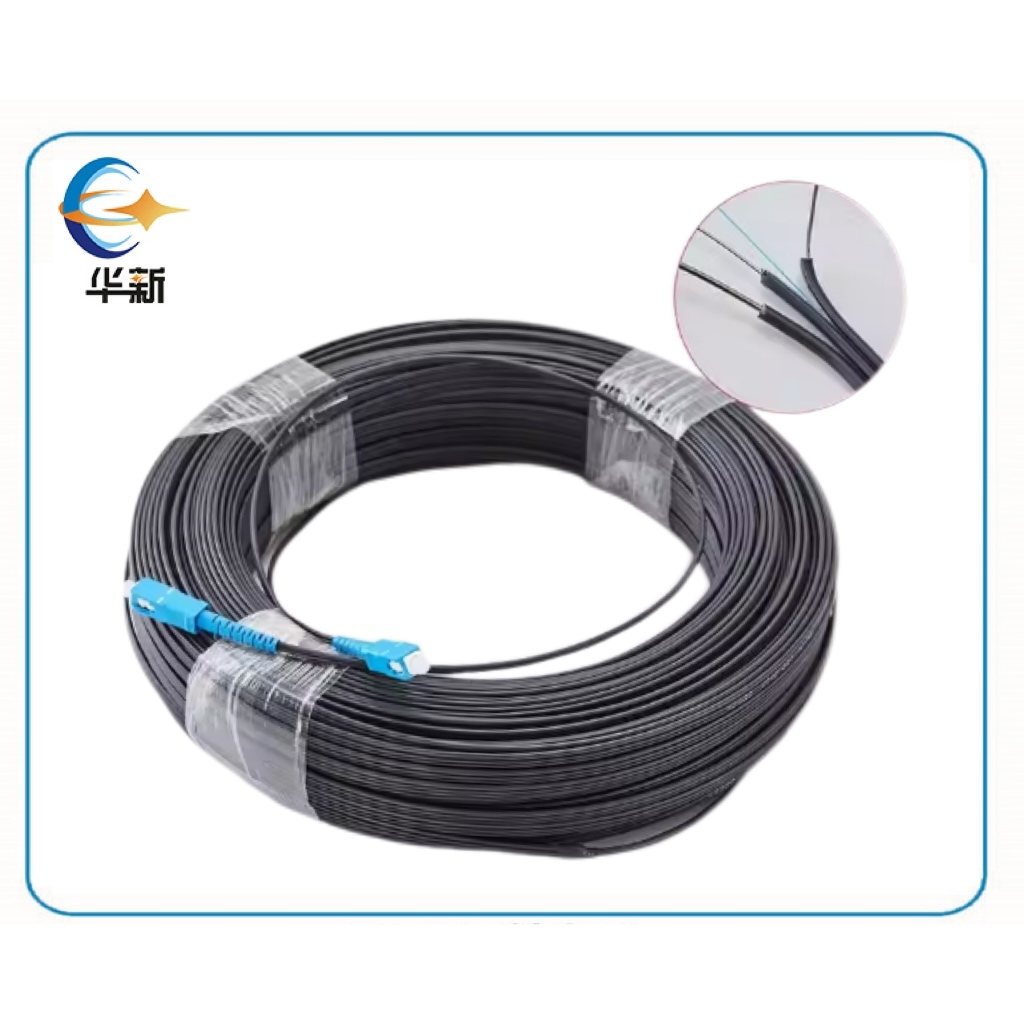

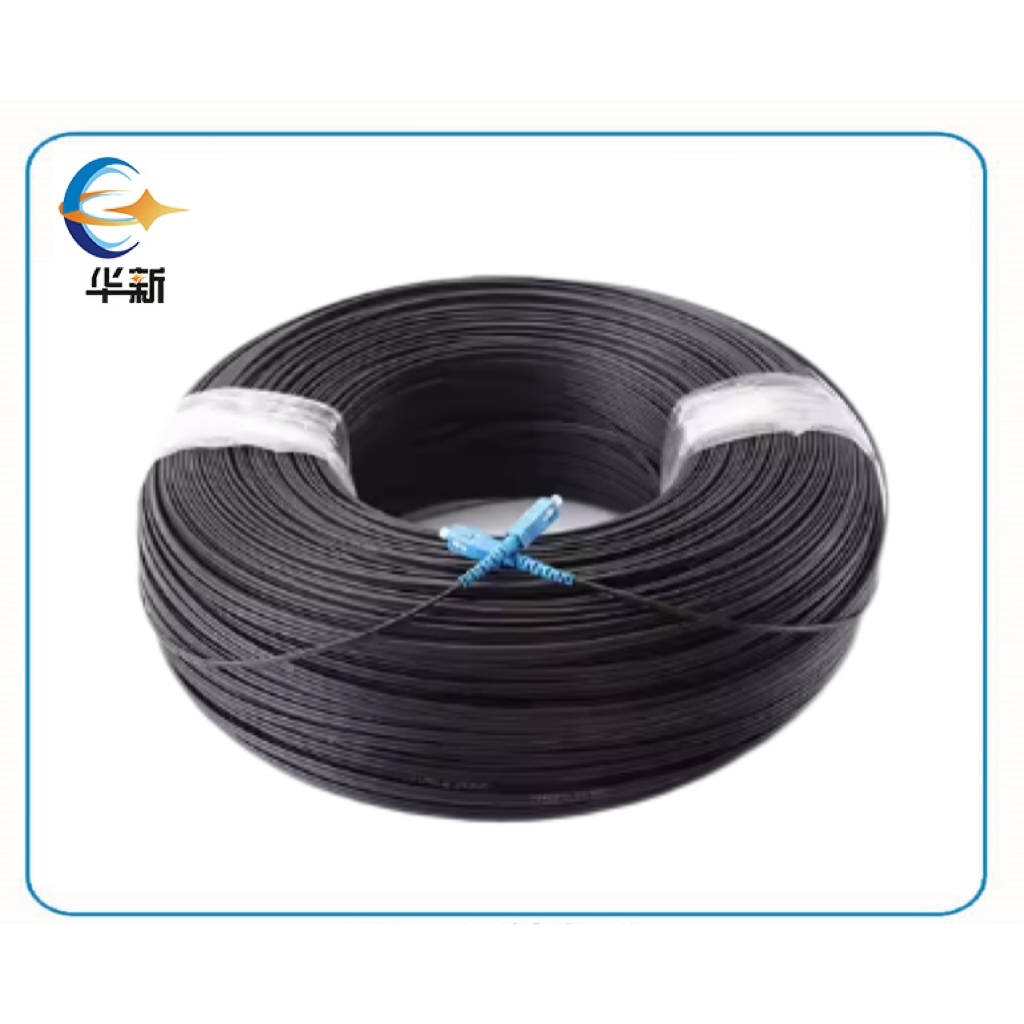

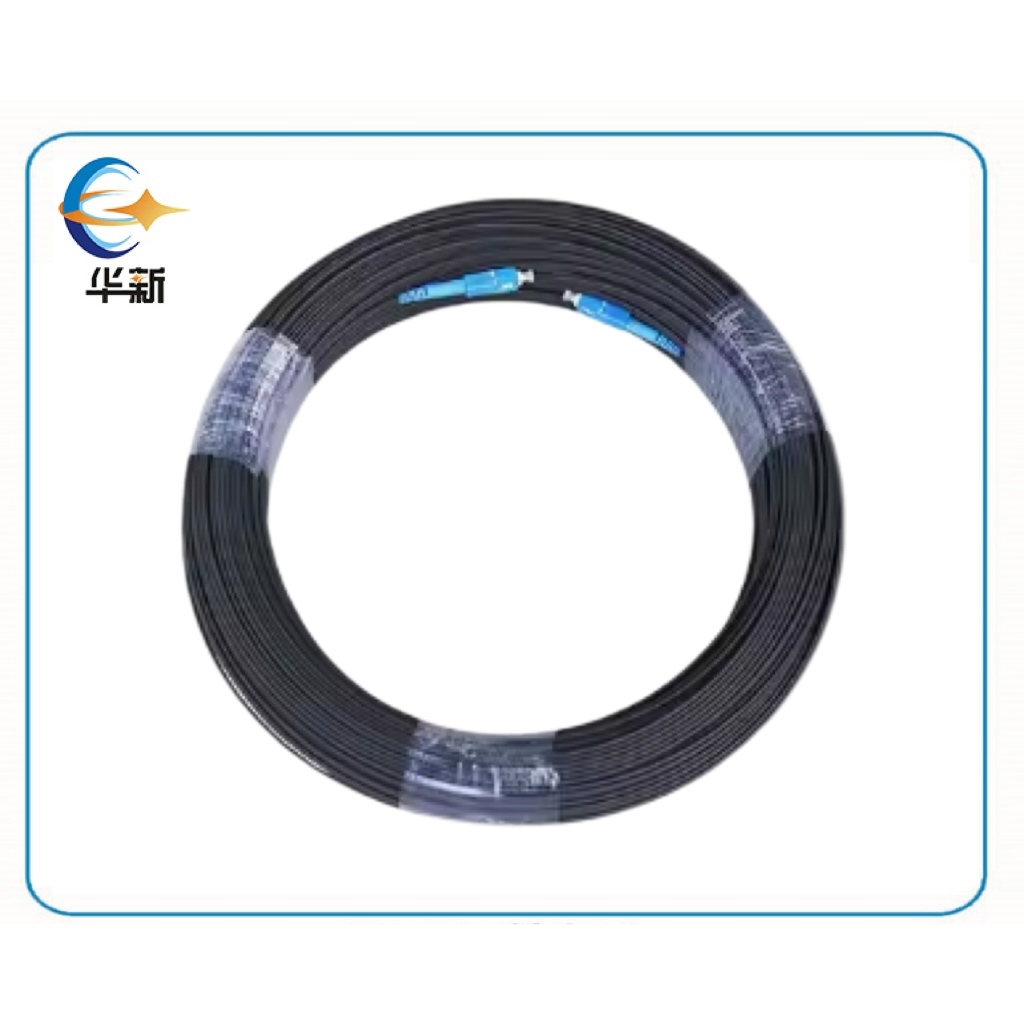

Pre-Connectorized Drop cable is over the ground fiber optic drop cable equipped with fabricated connector on both ends, packed in certain length, and used for distributing optical signal from Optical Distribution Point (ODP) to Optical Termination Premise (OTP) in customer’s House.

According to the transmission medium, it divides to Single Mode and Multi Mode Fiber Optic Pigtail; According to the connector structure type, it divides FC, SC, ST, MU, MTRJ, D4, E2000, LC etc.; According to the polished ceramic end-face, it divides to PC, UPC and APC.

Oyi can provide all kinds of optic fiber patchcord products; The transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization; it is widely used in optical network scenarios such as FTTX and LAN etc.

Pre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVCPre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVCPre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVC


Product Features


1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2. Excellent repeatability, exchangeability, wearability and stability.

3. Constructed from high quality connectors and standard fibers.

4. Applicable connector: FC, SC, ST, LC and etc.

5. Layouts can be wired much the same way as ordinary electric cable installation.

6. Novel flute design, easily strip and splice, simplify the installation and maintenance.

7. Available in different fibre types: G652D, G657A1, G657A2, G657B3.

8. Ferrule Interface Type: UPC TO UPC, APC TO APC, APC TO UPC.

9. Available FTTH Drop cable diameters: 2.0*3.0mm, 2.0*5.0mm.

10. Low smoke, zero halogen and flame retardant sheath.

11. Available in standard and custom lengths.

12. Conform to IEC, EIA-TIA, and Telecordia performance requirements.




Application



1. FTTH network for indoor and outdoor.

2. Local Area Network and Building Cabling Network.

3. Interconnect between instruments, terminal box and communication.

4. Factory LAN systems.

5. Intelligent optical fibre network in buildings, underground network systems.

6. Transportation control systems.

NOTE: We can provide specify patch cord which required by customer.


Specifications


Construction

Description

Fiber Count

1

Fiber Type

G.657A/G.652D

Length

20/50/100/150m(Optional)

Insertion Loss

≤ 0.25 dB

Return Loss

≥ 60 dB

Outer Sheath

Material:LSZH/PVC
Color:black

Connector Type

SC

Cable Diameter

2.0*3.0mm/2.0*5.0mm

Storage Temperature

-20 ~ +60℃

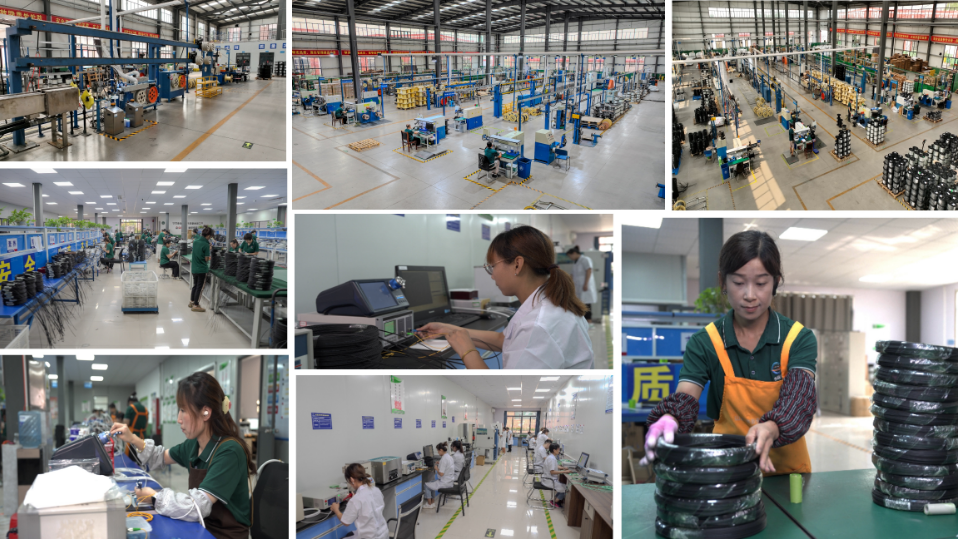

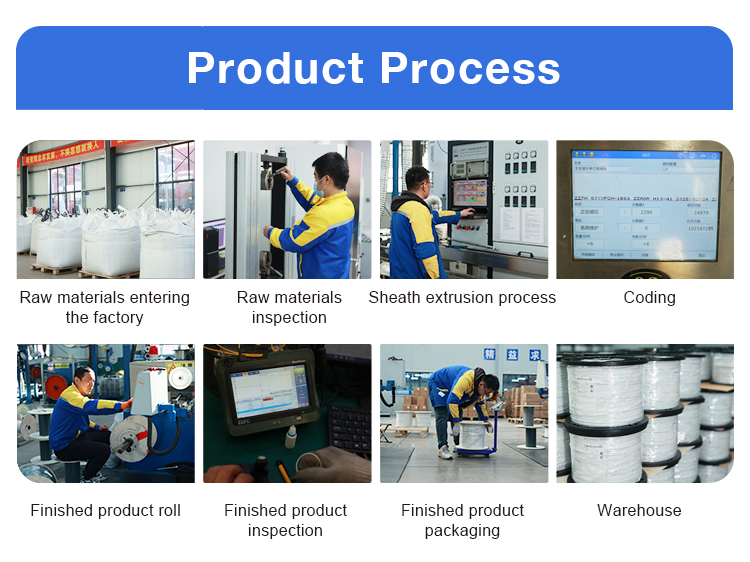

Company Profile

Pre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVC

Pre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVC

Pre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVC

Pre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVC


Certificates

Pre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVC

Exhibitions

Pre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVC

Packaging and Transportation

Pre-connectorized Patch Cord SC/UPC SC/APC Outdoor Ftth Fiber Optic Drop Cable Patch Cords LSZH PVC

FAQ

Q1. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

Q2. What about the MOQ?
A: Most products have a minimum order quantity, but some stocks can accept small orders.

Q3: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for
special ones.

Q4: How long is the guarantee of the product?
A: According to the type of product,We offer 1-3 years warranty to our formal products.

Q5: What about delivery time?
A: We need 1-3 days to handling the sample, and 5-15 days to process our normal goods.

Q6:How about the cable's quality ?
A: We guarantee that our products are ISO9001 standard compliant. We have a series of professional equipment and manufacturing
instruments to make sure reliable quality of our products.

Q7: How do l assure that you are a reliable supplier?
A: Our factory has dug in this industry for many years and sold to many countries in the world. If you are willing to verify that
through the phone or video, you are welcome at any time.

Q8: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum
quantity. Your satisfaction is our maximum motivation
